Description
The Powershield Defender PSD 650VA UPS is perfect for supporting multiple computers, peripherals, networked PCs, and point of sale systems. In case of a power outage, the UPS allows the PC to continue operating, allowing for safe shutdown and saving of work. To prevent damage to software and data, it is important to properly shutdown computers, which the UPS and included software can do automatically during power outages. Backup time can last up to 10 minutes, depending on the connected load. The compact design makes it suitable for under desk use.
Features
- Stylish and informative LCD display
- Surge Protection, Best in it’s Class
- Excellent microprocessor control guarantees high reliability
- Australian outlet sockets for UPS and Surge protection
- Buck and boost AVR for voltage stabilization

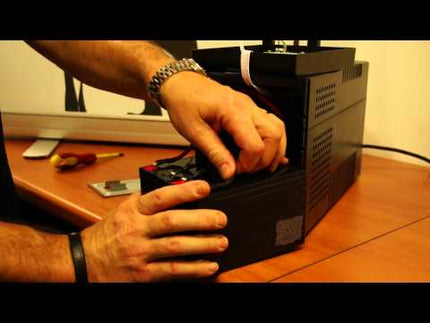

- User replaceable batteries
- Silent operation (no fans included)
- Auto restart when AC returns
- Off-mode charging
- Cold start function
- USB communication with sophisticated NetGuard® software
- Free download software included
Specifications
- Input
- Voltage: 240Vac (Nominal)
- Voltage Range: 177-290Vac
- Frequency Range: 50/60Hz ±5Hz (Auto sensing)
- Output
- Output Voltage: 240Vac ±10%
- Frequency: AC mode tracks utility
- Frequency Range (Batt. Mode): 50Hz or 60Hz ±1Hz
- Transfer Time: 6ms (Typical)
- Waveform (Batt. Mode): Simulated Sine Wave
- Australian outlets- UPS & surge protection: 2
- Battery
- Battery Type & Number: 12V*9AH (x1)
- Typical Recharge Time: 6 hours recovery to 90% capacity
- Backup Time (50% Load): 6min
- Protection
- Full Protection: Overload, discharge, thermal, short circuit and overcharge protection
- Surge Protection: 312Joules / 6500 Amps
- Communications & Management
- Interface: USB Interface
- Software: NetGuard® supports Windows®, Linux, Unix & MAC (Free Download)
- LCD Alarm: AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload
- Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Fault, Overload
- Physical
- Dimensions: 328D x 100W x 145H mm
- Net Weight: 5.2kg
- Shipping Weight: 6.27250Kg
- Operating environment
- Temperature: 0 - 40˚C
- Humidity: 0 - 90% (RH Non-condensing)
- Noise Level: <5dB (no fan)
- Compliance
- Safety/EMC: (A-tick PSD650) EN62040-1-1 2003 , IEC60950-1 : 2001 , EN62040-2 2006
- RoHS: Directive 2011 / 65 / EU
