Description

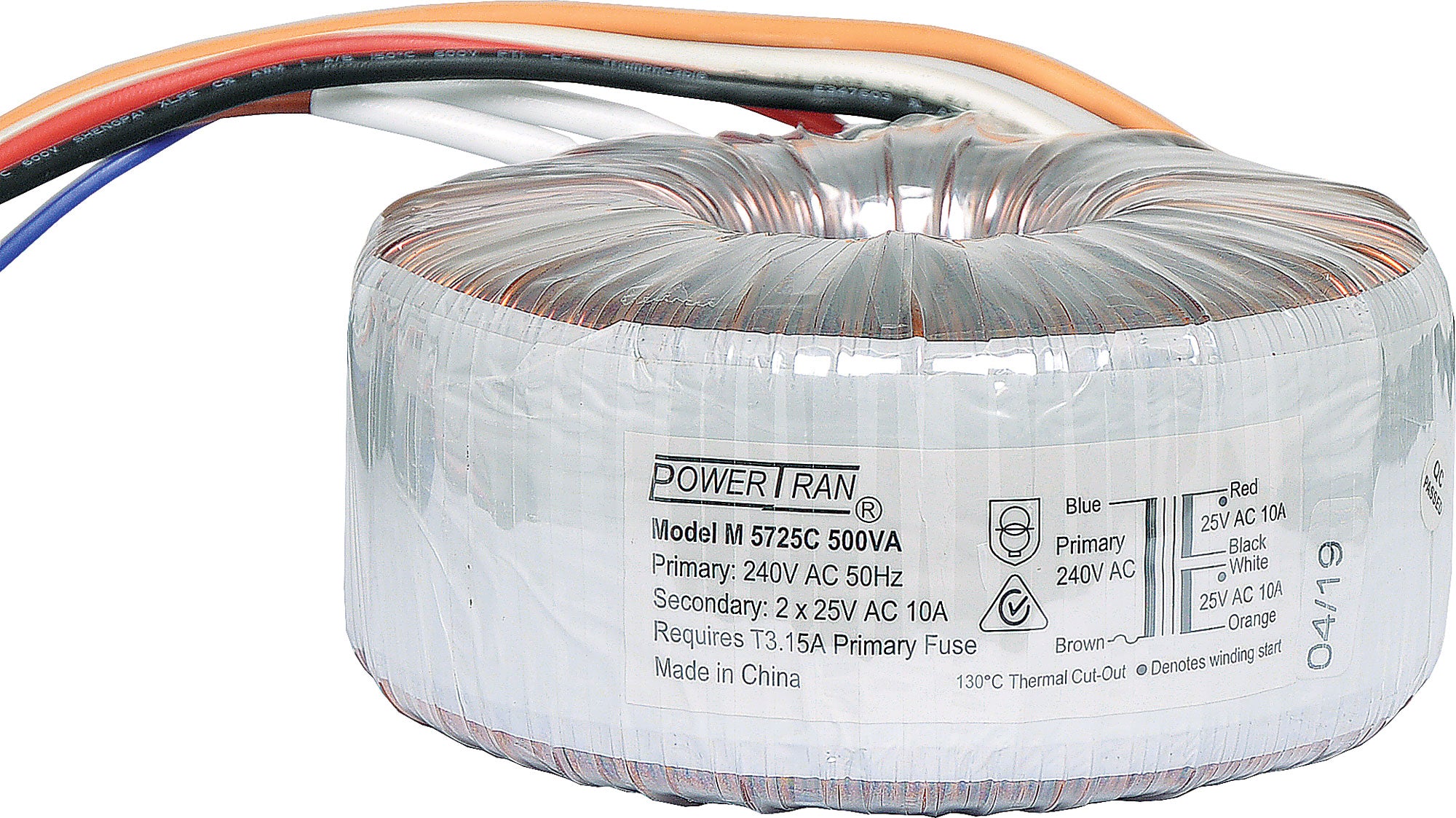

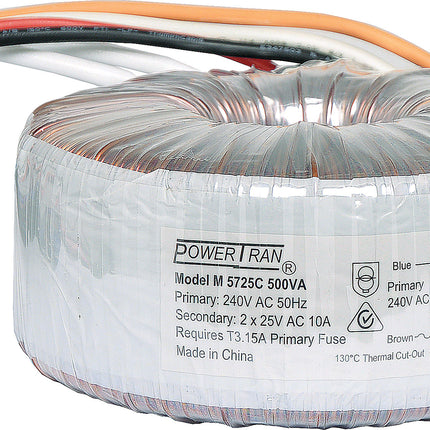

Toroidal transformers, known for their superior magnetic properties, are gaining popularity. Their unique donut shape minimizes leakage flux and reduces electromagnetic interference (EMI) emitted to surrounding circuits and equipment. In today's world of low-power and high frequency electronics, this advantage is significant.
Toroidal transformers can achieve a lower profile compared to standard solenoid core transformers, enabling equipment with similar power to have a more compact size.

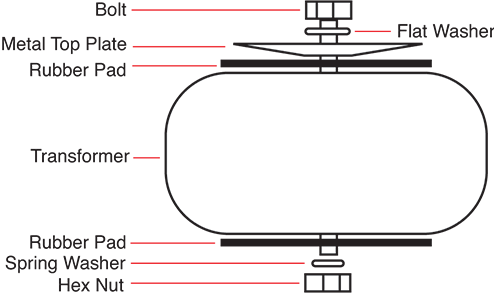

Included Mounting Hardware
- 1 x Metal Washer: Φ8.5 x 90 x 1.2mm
- 2 x Rubber Washer: Φ8.5 x 120 x 1.5mm
- 1 x M8 x 70 Screw
- 1 x M8 Hex Nut
- 1 x M8 Washer
- 1 x M8 Lock Washer
Specifications
- Safety Standard: AS/NZS 61558-2-6 Certified
- Primary voltage: 240V AC 50Hz
- Secondary voltage: 25V (parallel), 50V (series)
- Secondary current: 20A (parallel), 10A (series)
- Regulation: Better than 10%
- Maximum temperature rise: 75°C
- Maximum ambient Temperature: 25°C
- Dielectric strength: 4000V for 1 Minute
- Insulation class: Class B (130ºC)
- Tolerance: ± 2%
- Thermal Protector: Thermal cut-out 17AM033A5 130℃ 9A 250V
- Winding Wire: Enamelled Copper
- Pri. Winding: 574Ts￠0.96mm
- Sec. Winding: 75Ts+75Ts￠1.8mm

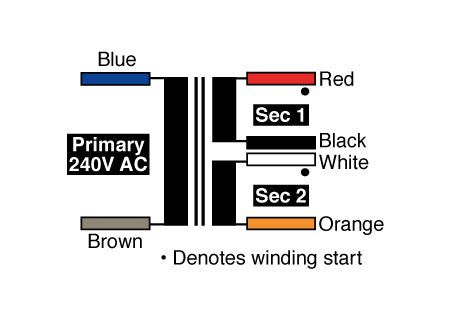

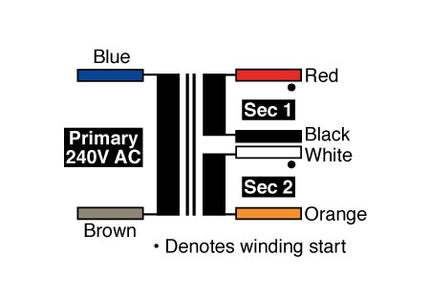

- Sec. Rating: 2 x 30VAC, 8.3A
- Pri. Lead Wire: UL1672 AWG#18, 105°C, VW-1, 300V, double insulation
- Sec. Lead Wire: UL3321 AWG#12 150 °C VW-1, 600V, Single insulation
