Description
PowerShield PSG750 UPS 750VA – Reliable Power Protection for Home & Office ⚡💻
The PowerShield PSG750 UPS is the perfect power backup solution for residential and small office environments. With automatic voltage regulation (AVR), battery backup, and surge protection, it ensures your computers, networking equipment, and sensitive electronics remain protected from power fluctuations and outages.
Its compact and lightweight design makes it ideal for home and office setups, while its USB communication, RJ45 phone line surge protection, and user-replaceable battery add convenience and longevity to the unit.
Key Features & Benefits:
✅ 750VA / 450W Capacity – Ideal for PCs, routers, modems, NAS drives, and small office equipment.

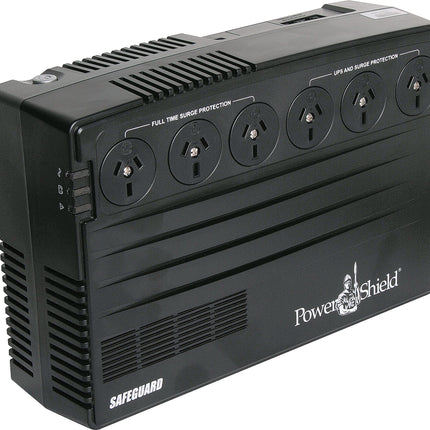

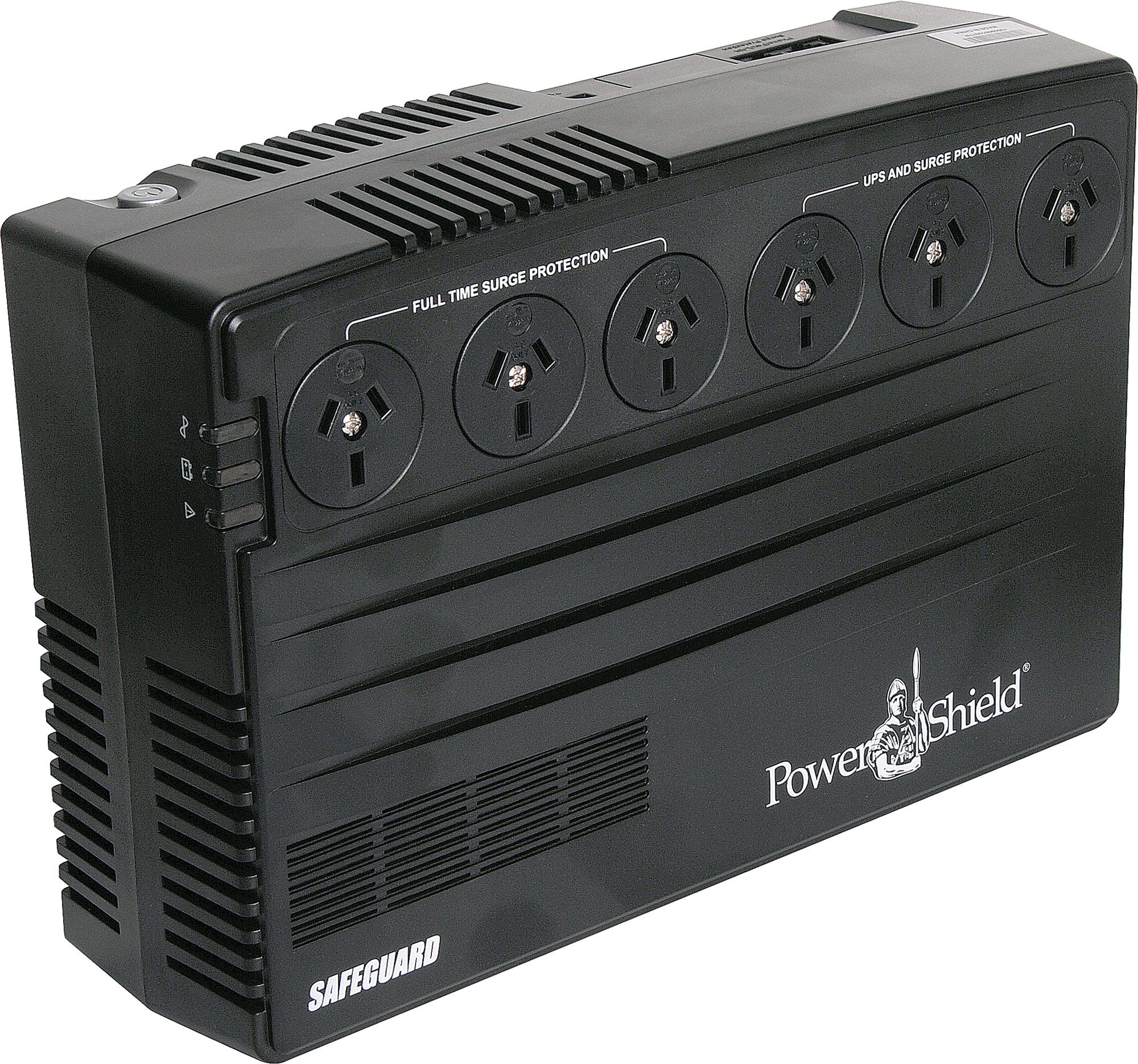

✅ 6 Australian Outlets – 3 with UPS & surge protection + 3 with full-time surge protection.
✅ Automatic Voltage Regulation (AVR) – Stabilizes power fluctuations, extending the life of connected devices.
✅ Battery Backup & Fast Charging – 25-minute runtime (100W PC load), 90% charge in 4 hours.
✅ Surge Protection (468J / 11,000A) – Protects against power spikes & lightning surges.
✅ RJ45 Phone Line / Modem / LAN Protection – Shields against network power surges.
✅ USB Interface & Power Management Software – Monitor and manage power on Windows, Mac, Linux, and Unix.
✅ Cold Start Function – Power up your devices directly from the battery during an outage.

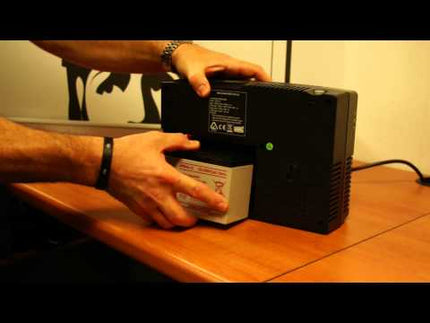

✅ User-Replaceable Battery – Easy maintenance for long-term reliability.
✅ Quiet Operation – No fan, ultra-low noise (<5dB) – perfect for home or office environments.
✅ Wall Mountable Design – Save desk space with flexible mounting options.
Technical Specifications:
✔ Capacity: 750VA / 450W (Line-Interactive UPS)
✔ Input Voltage: 240V AC (Nominal)
✔ Voltage Range: 177V - 290V AC
✔ Output Voltage (Battery Mode): 240V ±10% AC
✔ Battery Transfer Time: 6ms (typical)
✔ Waveform (Battery Mode): Simulated Sine Wave
✔ Battery: 12V / 9Ah
✔ Backup Time: Approx. 25 min (100W load)
✔ Recharge Time: 90% capacity in 6-8 hours
✔ Surge Protection: 468 Joules / 11,000 Amps
✔ Data Line Protection: Tel/Modem/LAN (RJ45 Connector)
✔ Communication Interface: USB with NetGuard® software
✔ Alarm Indicators: Audible & LED alerts for AC Mode, Battery Mode, Low Battery, and Faults
✔ Dimensions: 292mm (L) x 91mm (W) x 199mm (H)
✔ Weight: 5.5kg
✔ Operating Temperature: 0°C - 40°C
✔ Humidity: 0-90% RH (Non-condensing)
✔ Noise Level: <5dB (No Fan)
What's Included?
✔ PowerShield PSG750 UPS Unit
✔ USB Cable
✔ PowerShield NetGuard Software (Compatible with Windows, Mac, Linux, Unix)
✔ User Manual
Protect Your Devices with Reliable Power Backup!
The PowerShield PSG750 UPS is the ultimate power safeguard for home users and small offices, ensuring uninterrupted operation during power outages and protecting sensitive electronics from surges and spikes. Keep your PCs, network devices, and office equipment running safely and efficiently with this compact, feature-packed UPS.
