Description

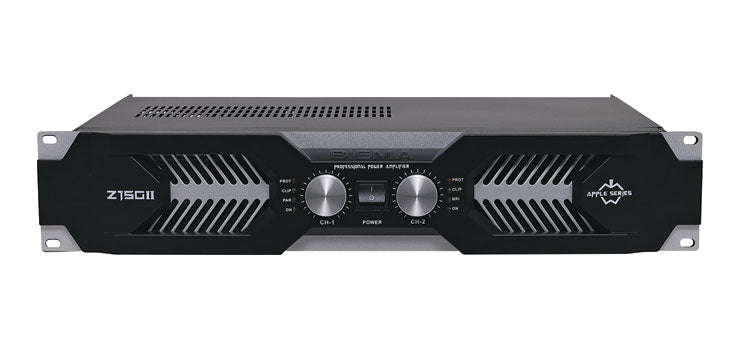

The "Apple" range, redesigned by Biema, boasts improved cooling, efficiency, and circuit protection for high-power bridgeable stereo amplification. It is ideal for foreground sound reinforcement in venues such as pubs, clubs, cinemas, and multi-function spaces. With a variable speed cooling fan and 'T' shaped heatsink tunnel, this amplifier excels in demanding conditions. Its protection circuitry guarantees the amplifier's integrity during overload, short circuit, and clipping.
Features
- Output Power (Stereo 8Ω): 150W + 150W
- TA 1KHz THD≤1% (4Ω): 220W + 220W
- Bridge 8Ω: 440W
- Frequency Response: 20Hz-20KHz +/-0.5dB
- Input Sensitivity: 0.77V
- Maximum input level: 18dB/6.2V
- Input Impedance active balanced: 20KOHMS/Balanced, 10KOHMS/un-Balanced
- Signal/noise ration a-weighted RMS: ≥95dB
- Crosstalk at rated output power (8Ω 1kHz): >70dB
- Damping Factor (f=1kHz 8Ω): >240
- Slew rate internal: 15V/us
- Protection: Short circuit, current limited DC fault AC line fuse, thermal cut off, power up/down transients
- Indicators: POWER (BLUE) PROT (RED) CLIP (YELLOW) BR (GREEN) PAR (GREEN)
- Cooling: Variable Speed Fan
- Front Panel Controls: LEVEL ACH, BCH POWER SWITCH
- Rear Panel Controls: STEREO/BRIDGE/PARALLEL MODE SWITCH
- Connector: XLR BALANCED INPUT, PROFESSIONAL SPEAKON OUTPUT
- Power consumption half power 8Ω: <440W
- Power Supply: 240V AC/50Hz
Specifications
- Interior Dimensions: 482 x 325.5 x 88mm
- Exterior Dimensions: 555 x 415 x 168mm
- Net Weight: 8.5kg
- Gross Weight: 10.5kg
- Shipping Weight: 11.50000Kg
