Description
Stay powered with this 132W LA laptop power supply that is designed for universal use. It features a reliable 100-240VAC 50/60Hz input frequency with a regulated output, short circuit and overload protections, an LED power indicator, and an added USB device charging port.

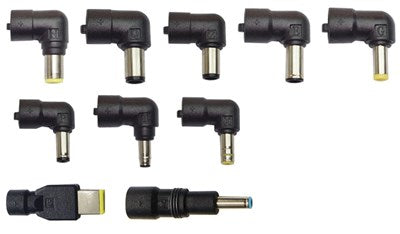

The power supply comes with 9 different polarity protected DC adaptors that suit the majority of laptop computer on the market such as: ACER, IBM, DELL, ASUS, Sony, Toshiba, Samsung, Compaq, Sony, Panasonic and more.
• 12.0V DC 8.5A
• 14.0 / 15.0V DC 7.0A
• 16.0 / 18.0V DC 6.5A
• 18.5 / 19.0 / 19.5 / 20.0V DC 6.0A
• 22.0 / 24.0 DC 5.5A
• 134.5W max.
• 5V @ 500mA 2.5W (USB A Power)
Outputs:
12VDC, 8.5A
14/15VDC, 7A
16/18VDC, 6.5A
18.5/19/19.5/20VDC, 6A
22/24VDC, 5.5A
5V, 0.5A (USB)
Connector N:
7.9mm Outer Diameter x 0.9mm Inner Diameter (pin) x 11.5mm Length
Suits: IBM, Lenovo
Connector QV2:
7.4mm Outer Diameter x 0.6mm Inner Diameter (pin) x 12.5mm Length
Suits: HP
Connecter ZV3:
7.4mm Outer Diameter x 0.6mm Inner Diameter (pin) x 12.5mm Length
Suits: Dell
Connecter E:
6.5mm Outer Diameter x 1.4mm Inner Diameter (pin) x 12.0mm Length
Suits: Fujitsu, Panasonic, Sony, Samsung, Dell
Connector G:
5mm Outer Diameter x 1mm Inner Diameter (pin) x 11.5mm Length
Suits: Samsung
Connector P:
5.5mm Inner Diameter x 2.5mm Outer Diameter x 12.0mm Length
Suits: Acer, Asus, Compaq, Gateway, HP, IBM, Fujitsu, Panasonic, Samsung, Sharp, Toshiba, Hitachi
Connector T:
4.75mm Outer Diameter x 1.7mm Inner Diameter x 10.0mm Length
Suits: HP
Connector X:
5.5mm Outer Diameter x 1.7mm Inner Diameter x 12.0mm Length
Suits: Acer
Connector AG:
4.5mm Outer Diameter x 0.60mm Inner Diameter (pin) x 12.0mm Length
Suits: HP
Connector AH:
Rectangular
Suits: Lenovo
Specifications
| Continuous Power : 132W |
| Voltage Selection : Manual switch |
| Number of plugs or sockets : 9pc |
| Length : 190mm |
| Width : 65mm |
| Depth : 40mm |
| Mains Voltage Range : 100V, 240V |
| Packaged Volume : 2.36l |
| Packaged Weight : 1.09kg |
| Packaged Length : 26.1cm |
| Packaged Width : 13.3cm |
| Packaged Height : 6.8cm |
