Description

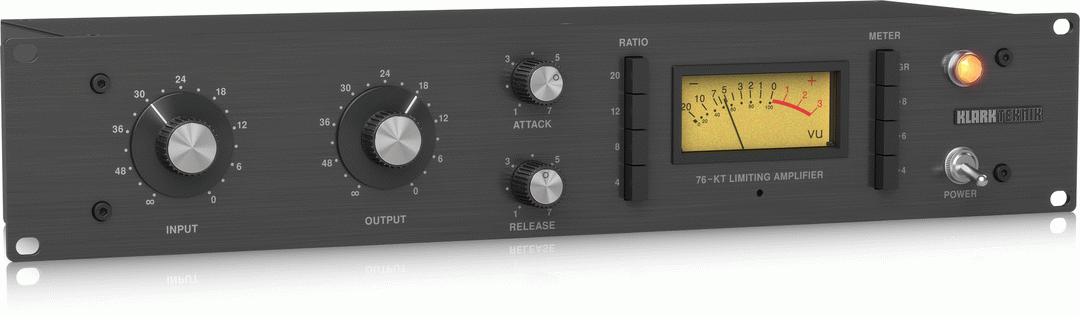

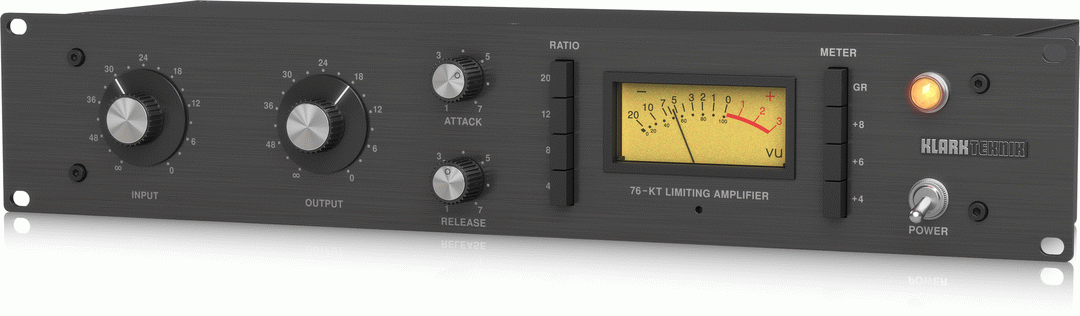

Meticulously designed to uphold the classic sound of the 1176LN, the 76-KT FET-Style Compressor features custom MIDAS inputs and outputs and a discrete signal path for superior audio clarity. Ratio selection is easy with four buttons for 4:1, 8:1, 12:1 and 20:1, plus an all-button mode ideal for drums, bass, guitar and vocals. Attack and Release knobs control the response time for both and a backlit VU meter shows output or gain reduction—+4, +6 and +8 dBm options.
Features
- Classic FET-style compressor modelled after iconic 1176LN*, D and E Revisions
- Completely discrete signal path
- Class-A line-level output amplifier
- Custom-built, MIDAS input and output transformers
- Push button selection of compression ratios: 4:1, 8:1, 12:1, 20:1
- Ultra-fast attack time: 20 to 800 microseconds
- Adjustable release time: 80 to 700 milliseconds
- Vintage-style meter features gain reduction and output

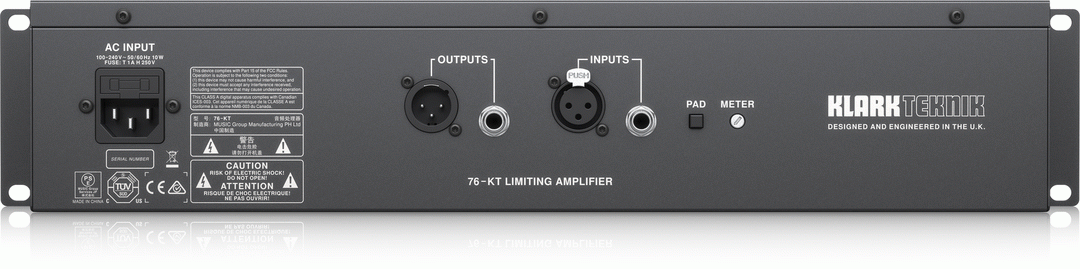

- Transformer balanced inputs and outputs on Neutrik* XLR connectors
- Rugged 2U rack-mount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
Specifications
- Height - 15.9cm
- Width - 48.3cm
- Length - 8.8cm
- Weight - 2.8kg
