Description

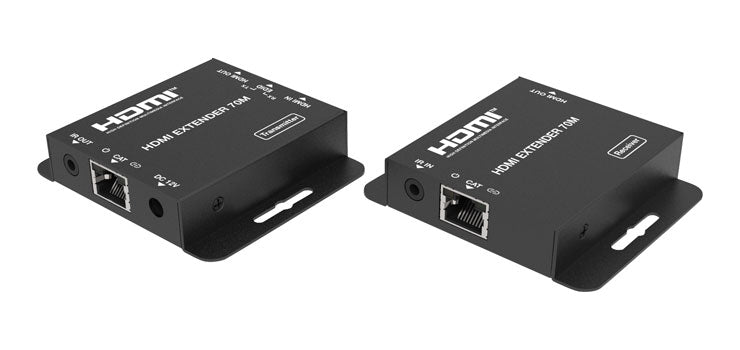

This HDMI & Infra-Red Cat5e/6 Extender (SKU: A3217D) is engineered for high-quality, long-distance signal transmission over a single Cat5e/6 cable. With the ability to transmit HD video, audio, and IR control signals up to 70 meters at 1080p or 40 meters at 4K@30Hz resolution, this extender ensures exceptional clarity and performance in demanding AV environments.
Key Features of the A3217D HDMI & IR Extender
Reliable Long-Distance Transmission
-
70m Range at 1080p / 40m at 4K30: Transmits high-definition video and audio signals with no compression or signal delay, maintaining pristine quality.
Seamless AV Integration with HDMI Loop Output
-
HDMI Loop Output: Supports additional extenders with resolutions up to 4K@30Hz, allowing cascading setups for flexible AV systems.
Advanced EDID Copy Function
-
EDID Copy Settings: Select between local or remote EDID for optimal compatibility with connected displays and devices, ensuring precise video configuration.
Comprehensive Audio Support
-
HD Audio Format Compatibility: Supports audio formats up to PCM 7.1, Dolby True HD, and DTS HD, delivering an immersive audio experience for professional setups.
Applications
Ideal for various applications, including:
-
Home Theater Systems: Reliable performance with uncompressed video/audio transmission.
-
Conference Rooms: Zero-delay signal ensures seamless presentations and clarity.
-
Educational Environments: Robust design and easy integration with existing AV setups.
Package Includes
- 1 × HDMI Transmitter
- 1 × HDMI Receiver
- 1 × IR Blaster Cable (1.5m)
- 1 × IR Receiver Cable (1.5m)
- 1 × 12V/1A DC Power Adapter
- 1 × User Manual
Technical Specifications
Transmission Range:
- Up to 70m for 1080p; 40m for 4K@30Hz over single Cat5e/6 cable
Compliance Standards:
-
HDMI Compliance: HDMI 1.4
-
HDCP Compliance: HDCP 1.4
-
DVI Compliance: DVI 1.0
Video and Audio Performance:
-
Resolution Support: Up to 4K@30Hz, YUV 4:4:4
-
Video Bandwidth: 10.2Gbps
-
Audio Support: PCM 7.1, Dolby True HD, DTS HD
Connectivity:
-
Transmitter: 1 x HDMI Input, 1 x HDMI Output, 1 x IR OUT, 1 x CAT OUT
-
Receiver: 1 x HDMI Output, 1 x IR IN, 1 x CAT IN
Power Requirements:
-
Power Supply: 12V/1A DC
-
Power Consumption: Transmitter: 1.86W, Receiver: 0.87W
Operating Conditions:
-
Temperature: 0°C ~ 40°C (Operation), -20°C ~ 60°C (Storage)
-
Humidity: 20~90% RH (non-condensing)
Why Choose the A3217D HDMI & IR Cat5e/6 Extender?
The A3217D HDMI & IR Extender provides reliable, high-quality transmission, making it suitable for professional AV installations. Designed with robust connectivity, zero-delay signal transfer, and compatibility with a wide range of audio-visual devices, it’s a versatile solution for any advanced AV setup.
