Description

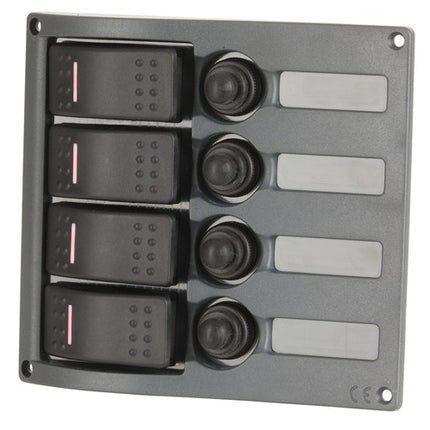

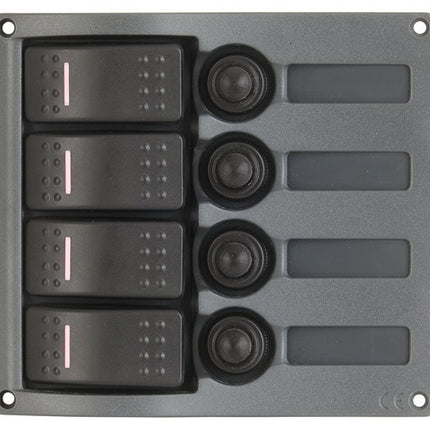

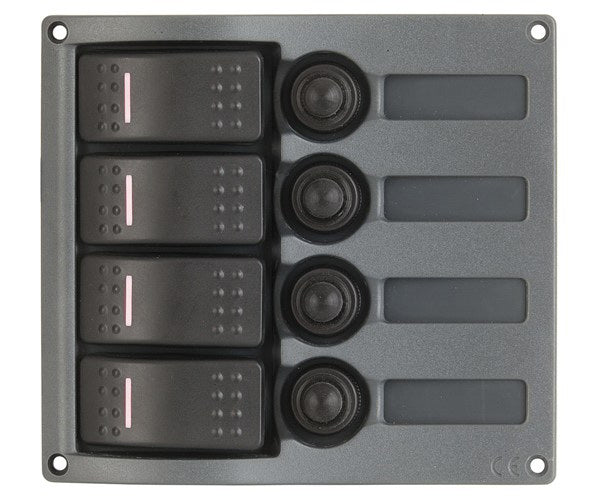

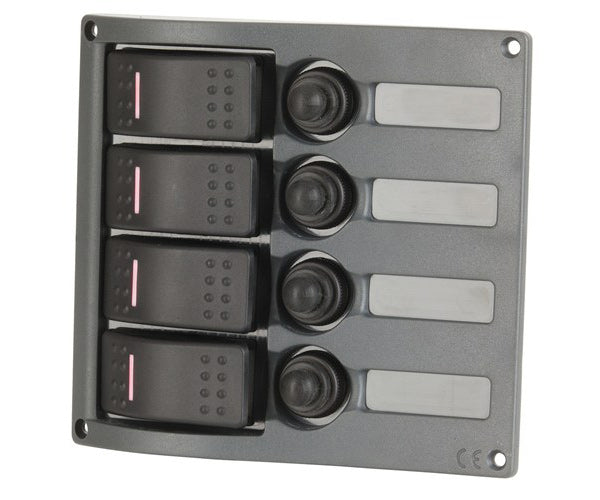

This 4-way IP66 Marine Switch Panel offers superior protection against water and dust, providing the highest level of reliability and durability in your marine environment. With its UL listed component construction and corrosion-resistant components, this switch panel is designed to stand up to the harshest marine conditions.

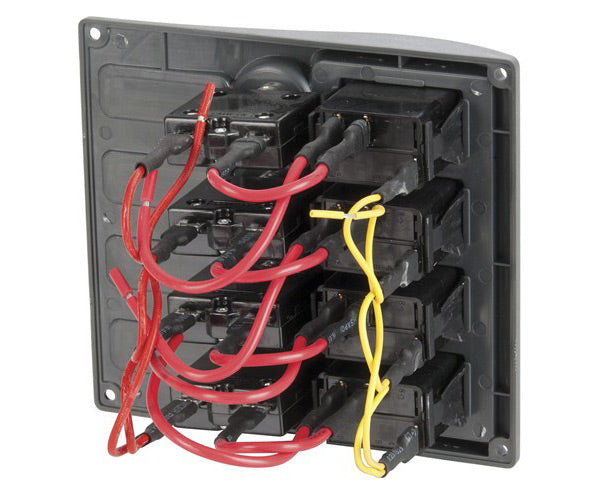

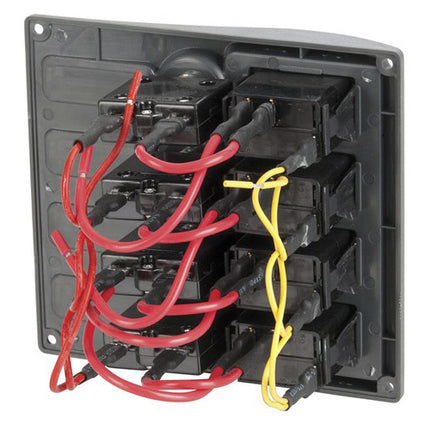

The panel's attractive rocker switches, pre-wired spade terminals, and LED illumination provide an ergonomic and intuitive experience. The panel is made from ABS plastic, and measures 120H x 130W. It features 6,10,15 & 20A rated circuit breakers for added safety.
Features
- Packaged Volume : 4.3l
- Packaged Weight : 0.4kg
- Packaged Length : 22.1cm
- Packaged Width : 16.9cm
- Packaged Height : 11.5cm
- Length : 120mm
- Width : 130mm
- IP Rating certificate : true
- IP Rating : IP66
- DC Voltage : 12V, 24V
- Switch Type : Rocker
- Throws / Positions : 1pos
- Mechanism Material : ABS Plastic (Acrylonitrile Butadiene Styrene)
- Switch Connection : Spade Terminals
- Switch Colour Coded : Black
- Number of Switches : 4pc
- Individual Circuit Breakers : 6A
