Description

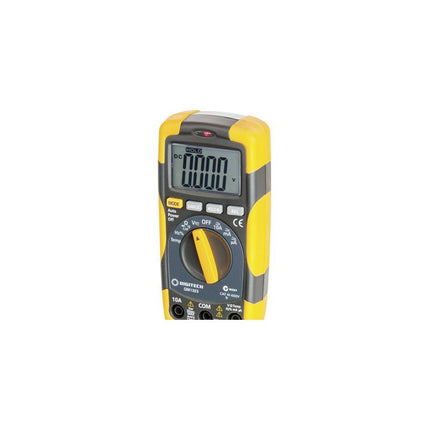

The Digitech QM1323 is a reliable Cat III multimeter with temperature sensing capabilities. It can measure current up to 10A AC/DC, frequency, and capacitance with high accuracy. Perfect for electricians, technicians, and DIYers looking for precision and safety.
This Digitech digital multimeter is a reliable and professional device for measuring temperature, frequency, and capacitance. This Cat III multimeter offers 10A ACDC current, giving it a wide range of usage. Get the most out of your device with its wide range of features for any application.
Features:
- Category: Cat III 600V
- Display: 4000 count
- Basic DVC accuracy: 0.5%
- Ave/RMS: Ave
- Data hold
- Relative measurement
- Woven nylon pouch with room for the meter and leads included
- Leads included
- K-type probe included
- Case included
Specifications
- Width: 68mm
- Height: 138mm
- Depth: 37mm
- Meter Input Impedence: 10MΩ
- Led Indicator Display: true
- Inline Sensor: false
- Measures diode: true
- Data Hold: true
- Relative Measure: true
- Safety Rating Cat: Cat III
- Safety Rating Max Volt: 600V
- Display Type: LCD
- Display Height: 55mm
- Display Width: 25mm
- Display Backlight: true
- Probe Type: Basic Meter Probes
- Overall probe length: 142mm
- Tip length: 2mm
- Tip diameter: 2mm
- Connection to meter: Shrouded 4mm Banana Plug
- Lead Length: 870mm
- Probe rating voltage: 600V
- Probe safety rating: Cat III
- Inductive Pickup: true
- Onboard socket: false
- Measures in Celcius: true
- Measures in Kelvin: false
- Measures in Fahrenheit: true
- Packaged Volume: 1.77l
- Packaged Weight: 0.44kg
- Packaged Length: 20.5cm
- Packaged Width: 12.3cm
- Packaged Height: 7cm
- Size / Shape: 9V
- Battery quantity: 1pc
- Batteries included: true
- Batteries can be replaced by user: true
- Compartment location: Internal / In-built
- How is battery compartment kept closed: Clip and Screw
- DC Voltage Ranges: 400mV, 4V, 40V, 400V, 600V
- DC Voltage Accuracy: 0.5%
- AC Voltage Ranges: 400mV, 4V, 40V, 400V, 600V
- AC Voltage Accuracy: 1.2%
- AC Current Ranges: 4mA, 40mA, 400mA, 10A
- AC Current Accuracy: 3%
- DC Current Ranges: 4mA, 40mA, 400mA, 10A
- DC Current Accuracy: 2.5%
- Resistance Ranges: 400Ω, 4kΩ, 40kΩ, 400kΩ, 40Ω
- Resistance Accuracy: 1.2%
- Capacitance Ranges: 4nF, 40nF, 4µF, 40µF, 100µF
- Capacitance Accuracy: 3%
- Frequency Ranges: 4kHz, 40kHz, 400kHz, 4kHz, 10MHz
- Frequency Accuracy: 1.5
- Outdoor / Exterior Scale: -20°C, 760°C
- Celcius Accuracy: 3%
- Probe Material: Woven Teflon
- Lead Length: 900mm
- Connection to Meter: Mini-Marlin Plug with Banana Plug Adaptor
- Sensor Type: K-Type Thermocouple
- Count Maximum Reading: 4000 count
- Autorange: true
- Measures duty cycle: true
- Input Protection Fuse: 10mA
