Description

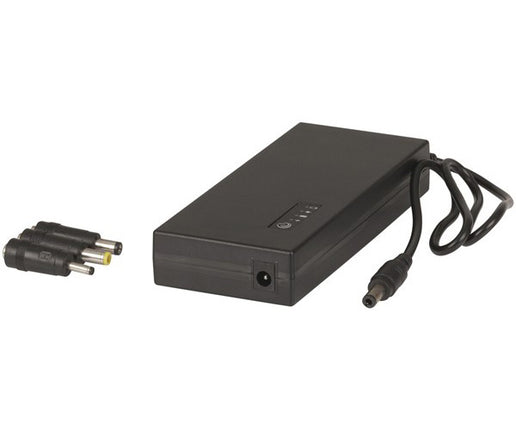

This 12V 2.5A DC to DC Uninterruptable Power Supply MP5240 is designed to fit between an ordinary 12VDC adapter and electronic equipment. It maintains power in the case of a power failure and comes with three interchangeable DC connectors for a variety of devices. Additionally, the smart charger adjusts the current draw based on the device being powered, and the rated output is 2.5A at 12V with 3A available for a short time. The four status LEDs indicate the UPS charge status, while the safety features protect against over-charge, over-discharge, over-current, and short-circuits.
Features:
- 2.5A Output
- DC Power
- Built-in rechargeable Li-ion battery
- Integrated smart charger
- LED status indicators
DC Connectors (mm):
- Input: 5.5OD x 2.1ID - Center Tip Positive
- Output: 5.5OD x 2.5ID - Center Tip Positive
Adaptors (mm):
- 5.5OD/2.5ID Male to 5.5OD/2.1ID Female - Center Tip Positive
- 3.5OD/1.35ID Male to 5.5OD/2.5ID Female - Center Tip Positive
- 5.5OD/2.1ID Male to 3.5OD/1.35ID Female - Center Tip Positive
Specifications
| DC current rating : 2.5A |
| DC Current Surge Rating : 3A |
| DC Voltage : 12.2V |
| Length : 138mm |
| Width : 60mm |
| Height : 24mm |
| Weight : 260g |
| DG UN Number : 3481 |
| DG Ship Name : 3481 - Lithium Ion Batteries Packed In Equipment |
| DG Class : 9 |
| DG Pack Group : II - Medium Danger |
| DG Hazardous Chemical Code : 4W |
| Battery Watt Hour Rating (Required for Lithium Batteries) : 7.4Wh |
| Packaged Volume : 1.01l |
| Packaged Weight : 0.33kg |
| Packaged Length : 19.7cm |
| Packaged Width : 15.5cm |
| Packaged Height : 3.3cm |
| Recharging Voltage : 11.8V, 12.5V |
| Standard Recharge Current : 0.8A |
| Battery Chemical Composition : Lithium Ion |
| Type of battery : 18650 |
