Description

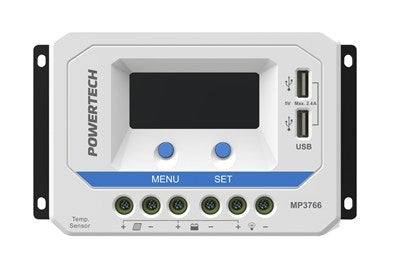

Provide efficient solar power management with this Powertech 12V/24V 30A PWM Solar Charge Controller and its MP3766 LCD display. This charge controller features an intelligent three-stage charging system with maximum efficiency up to 98%. With overcharge, discharge, and short-circuit protection, it ensures reliable and safe power delivery. Enjoy optimal performance and reliable solar energy storage with this Powertech 12V/24V 30A PWM Solar Charge Controller and its MP3766 LCD display. Its efficient three-stage charging system, up to 98% efficiency, and robust protection features offer reliable and secure power delivery.
Features:
- PWM control technology
- Backlit LCD with real-time energy stats, operational and fault message
- Temperature sensor input for battery charging compensation
- Low-voltage disconnect/reconnect
- 3-stage charging
- Backlit LCD screen
- 2 programmable timers
- 2 x USB Ports
Specifications
| Packaged Volume : 2l |
| Packaged Weight : 0.68kg |
| Packaged Length : 20.7cm |
| Packaged Width : 11.9cm |
| Packaged Height : 8.1cm |
| Length : 181mm |
| Width : 101mm |
| Height : 60mm |
| Weight : 550g |
| Max Solar Panel Array : 5W, 390W |
| Max Charging Current : 30A |
| Charge Controller Technology : Pulse Width Modulated (PWM) |
