Description

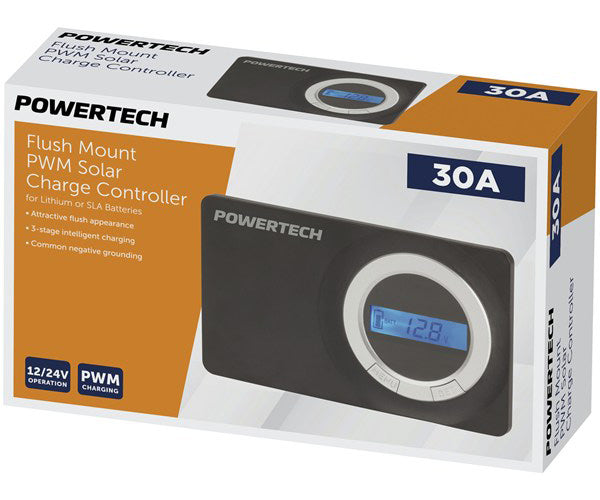

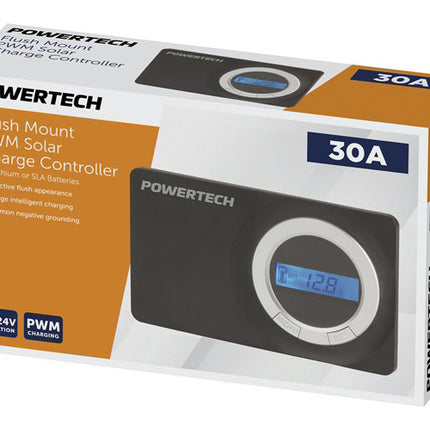

The Powertech MP3764 solar charge controller is designed to provide efficient energy efficiency with its 30A capacity and PWM charging technology. The LCD display keeps you in control, providing an at-a-glance view of battery levels. Backed by 12/24V output, this controller delivers reliable performance. This powerful system ensures you can fully power your day-to-day tasks with confidence as it continuously regulates charge to maximize your solar controller efficiency.
Battery Support:
- Sealed, Gel or flooded Lead (8V - 30V)
- LiFePO4 (4S/12V, 8S/24V)
Features:
- 8 - 32VDC Operating Range, 50VDC Maximum Open-Circuit Solar Voltage
- Compatible with Lead acid and LiFePO4 batteries
- Flush mount
- Bulk, Boost/Equalize, Float charging modes

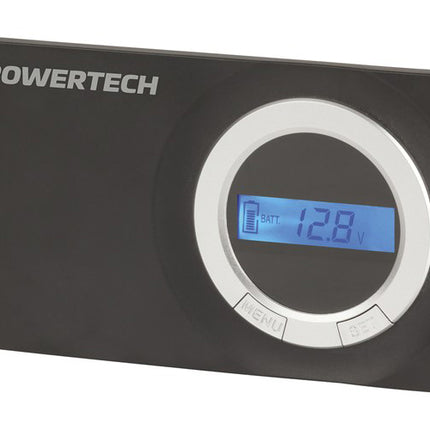

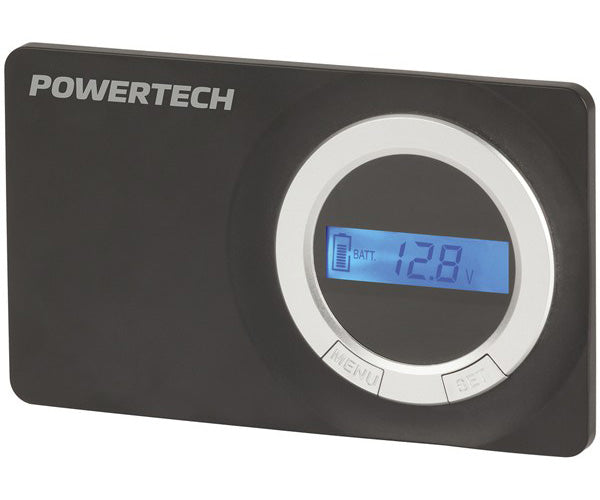

- LCD screen with real-time energy stats, operational and fault message
- Battery temperature compensation
- Remote control; monitor and set parameters via PC or APP
- 10mm2/8AWG Recommended Cable Size (16mm2/6AWG Max)
- Max input: 360W @ 12V, 720W @ 24V
Wi-Fi Connection Module (Sold Separately)
Add Wi-Fi communication to the MP3764 Solar Charge Controller with this interface and control your power installation with your Smartphone - up to 50m communication range
Specifications :
| DC current rating : 30A |
| DC Voltage : 12V, 24V |
| IP Rating : IP30 |
| Dust/Particle Ingress Protection : 3 - Objects > 2.5mm, Tools, thick wires etc |
| Liquid/Moisture Ingress Protection : 0 - Not protected |
| Width : 179mm |
| Height : 106mm |
| Depth : 49mm |
| Weight : 300g |
| Packaged Volume : 1.66l |
| Packaged Weight : 0.45kg |
| Packaged Length : 20.9cm |
| Packaged Width : 12.6cm |
| Packaged Height : 6.3cm |
| Dimensions details : Mounting Screw Hole Size |
| Diameter : 5mm |
| Dimension details : Mounting Cutout |
| Width : 96mm |
| Height : 158mm |
| Charge Controller Technology : Pulse Width Modulated (PWM) |
| Max PV Open Circuit Voltage : 30V |
| Max Charging Current : 30A |
