Description

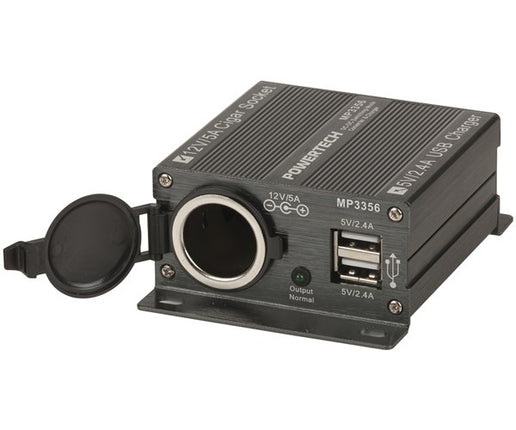

For those with a 24V power source like a truck or bus, this device delivers an essential solution, converting 24VDC to 12VDC for use with common 12V car accessories. Plugging in is simple, featuring a cigarette lighter plug for 24V input and a cigarette lighter socket for 12V output - with a maximum rated current of 5A suitable for most automotive chargers and supplies. Plus, two 2.4A USB ports allow convenient charging of Smartphones, tablets, and other USB gadgets. It also offers noise filtering and safety features, including fuse protection, over-voltage and current limitation.
Features:
- Converts 24V to 12V
- Dual USB Ports
- Built-in noise filter
- Max. Output Current: 5A (Cigarette Socket), 2.4A (USB)
- Continuous Current: 4A (Cigarette Socket), 2A (USB)
- No Load Input Current: ≤ 50mA
- Line Regulation: 0.1%
- Load Regulation: 0.02%
- Output Ripple Noise: 100mV (RMS)
- Efficiency: Over 85%
- Input Connection: Cigarette Plug with 1m Cable
- Input Fuse: 5A Glass Fuse
Specifications
| Packaged Volume : 1.08l |
| Packaged Weight : 0.29kg |
| Packaged Length : 18cm |
| Packaged Width : 15cm |
| Packaged Height : 4cm |
| Length : 100mm |
| Width : 75mm |
| Height : 35mm |
| Cable length : 200m |
| Vehicle Connection : Cigarette Lighter |
| Required Voltage : 12V, 30V |
| DC Voltage : 12V, 5V |
| DC current rating : 5A |
| Type of converter or transformer : DC to DC |
| Output Type : Cigarette LighterUSB Type A |
| Number of Outputs : 3pc |
| Output Connection : Socket |
