Description

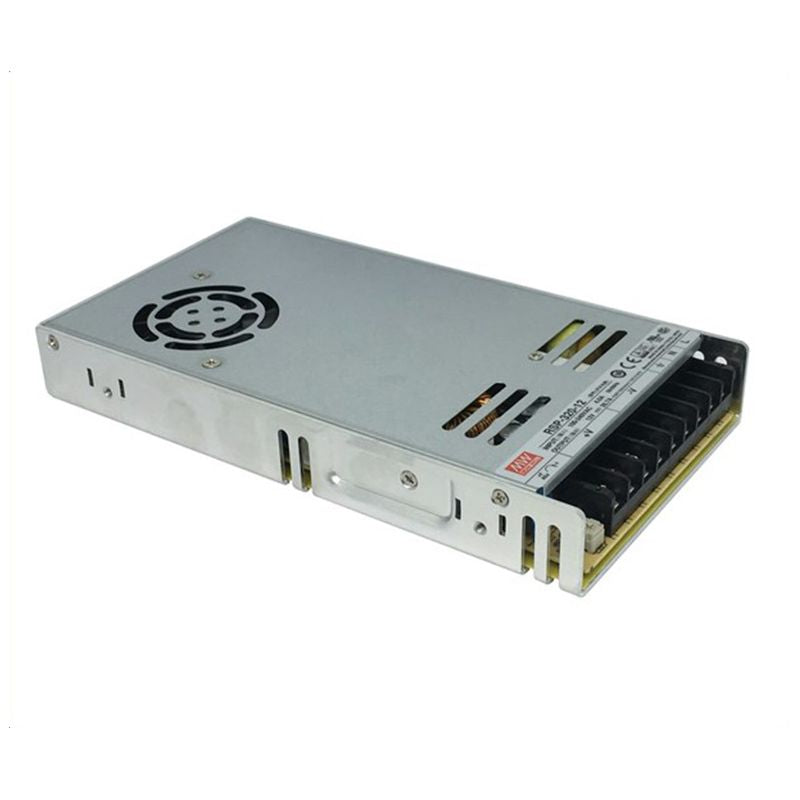

A reliable, operationally efficient, fixed voltage, enclosed power supply with minimal power consumption (<0.2~0.75W). This new generation model's 30mm low profile design enables deployment in 1U rack enclosures, while the metallic mesh case optimizes heat dissipation. In addition the unit is capable of operating at altitudes of up to 5000 metres. Perfect for a diverse range of applications, including industrial and household.
Features:
• Full range 85~264VAC input
• Withstand 300VAC surge input for 5 seconds
• High efficiency, long life and high reliability
• Operates from -30°C to 70°C under air convection without a fan
• Extremely low no load power consumption
• Complete protective functions
• Power on LED indicator
• 5G anti-vibration capability
• Complies with international safety standards.
• 100% full load burn-in test
• 3 year warranty
• Input Frequency: 47-63Hz
• Cold Start Inrush Current: 40A
Specifications
| DC current rating : 26.7A |
| DC Voltage : 12V |
| DC Voltage tolerance : 1% |
| Continuous Power : 320W |
| Operating Temperature : 70°C |
| Length : 215mm |
| Width : 115mm |
| Height : 30mm |
| Weight : 900g |
| Mains Voltage Range : 88V, 264V |
| Frequency : 47Hz, 63Hz |
| Rated for AU Mains : true |
| Rated for US Mains : true |
| Auto-select mains voltage : true |
| Mains Item connection : Screw Terminal |
| DC Voltage : 124V, 370V |
| Item connection : Screw Terminals |
| Mounting Method : Chassis |
| Attachment / Securing Method : Screw Down |
| Packaged Volume : 1.15l |
| Packaged Weight : 0.87kg |
| Packaged Length : 24cm |
| Packaged Width : 12cm |
| Packaged Height : 4cm |
| Type of Power Supply : Metal frame chassis |
| Regulation Type : SMPS |
| Output Connection : Screw Terminal |
| Efficiency : 88% |
| Ripple Voltage : 150mV |
