Description

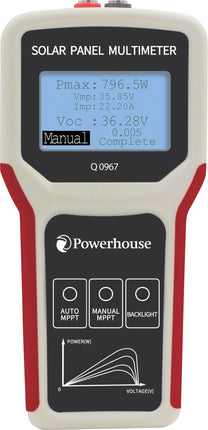

This PV Solar Panel Tester is specifically for measuring voltage, current, and power of connected panels up to 800W. It allows for instant feedback on PV system performance and assists in determining the most efficient placement of solar panels. Features include automatic and manual MPPT interval measurement, as well as a backlit LCD screen for easy reading. The package includes an MC4 connection cable, croc clip cable, and a convenient carry case.
Features
- Auto/manual MPPT detection.
- Multiple protections - short circuit, reverse polarity, over voltage, over temperature, over current.
- No power supply required - no batteries.
- Large LCD with easy to read backlit display.
- Includes croc clip test cables, MC4 test cables and carry case.
- Power: 5-800W
- Voltage: 12-60V
- Current: 0-35A
- Dimensions: 165x80x30mm
- Weight: 470g
