Description

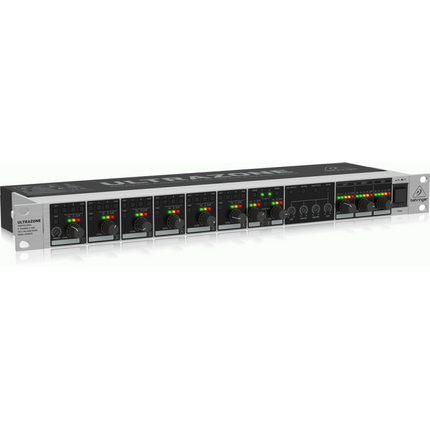

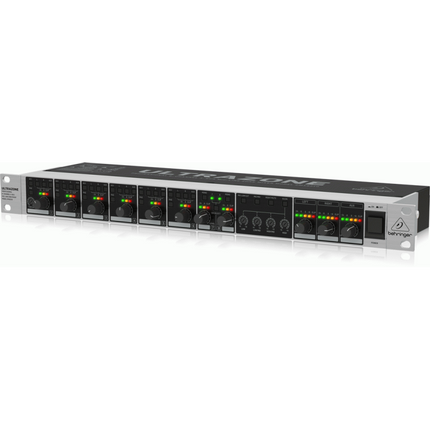

Crafted with precision for fixed installations, the ULTRAZONE ZMX8210 zone mixer is a sophisticated 8-channel audio mixer. Its rack-mountable design facilitates seamless integration into your setup, allowing you to distribute music programming and announcements across up to three zones or rooms with unparalleled clarity and control. Versatile and reliable, this mixer finds its place in a myriad of environments, including restaurants, office spaces, health clubs, houses of worship, and beyond. Whether orchestrating background music or delivering critical announcements, the ZMX8210 ensures optimal audio performance tailored to your specific needs.
Features
- Ultra-flexible and easy-to-use zone mixer with remote control ports for commercial sound systems and fixed installation applications
- 6 ultra-low noise Mic/Line inputs with Gain control, -20 dB Pad, Level/Clip indicator, +48 V phantom power and bus-assign switches
- 2 selectable high-headroom stereo inputs with mono/stereo switch
- Channel 1 provides variable threshold to enable automatic bus mute for announcements, etc.
- 3 assignable outputs (Left, Right and Aux) with individual Master controls and 5-segment LED meters
- Ultra-musical 4-band master EQ and global microphone low-cut filter for perfect sound adjustment
- Left, Right, Aux and Mute bus links available including Master/Slave switch for connecting multiple units
- Remote master Left/Right level control port for ultimate flexibility
- Select switch for routing microphone bus post remote control
- Integrated channel muting system with Priority select
- Inputs/outputs on Euroblock and RCA connectors
- Internal switch-mode power supply (100 - 240 V~) for noise-free audio and low power consumption
Specifications
- Height - 44cm
- Width - 48.3cm
- Length - 15.3cm
- Weight - 1.7kg
