Description

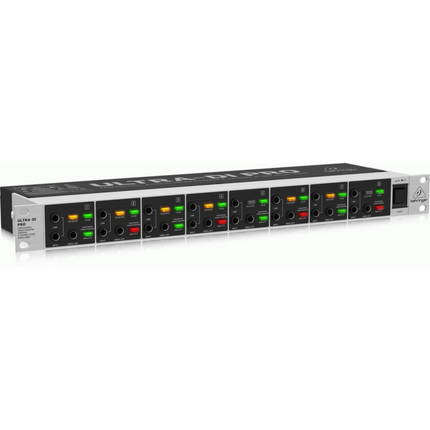

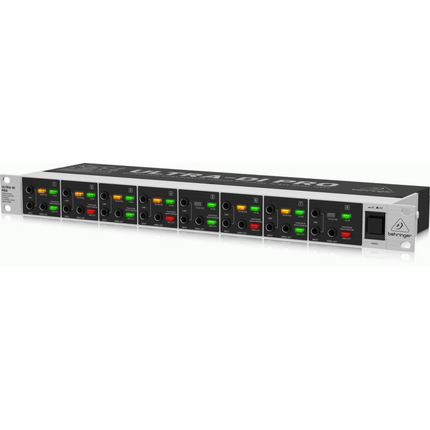

The DI800 ULTRA-DI PRO is a rack-mountable 8-channel active DI-box powered by mains/phantom, perfect for accommodating multiple musicians on stage or in the studio. DI boxes are a necessary tool for connecting guitars, basses, keyboards, and other line-level devices to audio mixers and recorders, providing proper impedance-matching and signal integrity. Our active DI800 offers "buffered" inputs for superior respect of your source signal compared to passive DI boxes. The balanced signals leaving the DI800 have an extremely low-impedance (typically less than 680 Ω), making them less susceptible to noise and RF Interference (RFI).
Features
- Professional and multi-purpose 8-channel direct injection box for stage and studio applications
- Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
- Ultra-flat frequency response due to servo-balanced operation
- Optional mains or phantom-powered operation
- Allows direct connection to speaker outputs with up to 3,000 Watts
- +20 dB gain switch for pre-amplification of low-level signals
- Switchable input attenuation allows input levels of up to +40 dB
- Ground Lift switch eliminates typical ground loop problems
- Link output for easy connection to further equipment
- 1/4" TRS and gold-plated XLR connectors
- Illuminated switches enable perfect operation in dark stage environments
- Internal switch-mode power supply (100 - 240 V~) for noise-free audio and low power consumption
Specifications
- Width 48cm
- Depth 15cm
- Height 5cm
- Weight 2kg
