Description

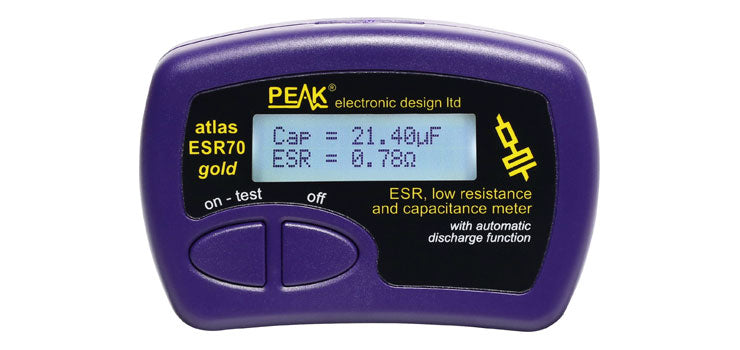

The Peak Atlas ESR Gold is an enhanced version of the previous Peak Atlas ESR Plus, offering advanced features for measuring a capacitor's ESR (Equivalent Series Resistance) and capacitance value with precision. Equipped with gold-plated probes (which are removable), this device can measure ESR with a resolution as fine as 0.01Ω, and it can handle measurements up to 40Ω. One of its standout features is the ability to measure ESR for capacitors while they are still in-circuit, making it a versatile tool for various applications. The removable probes allow for flexibility, enabling you to fit 2mm compatible probes as needed. This adaptability ensures that the Peak Atlas ESR Gold can be used with a wide range of capacitors and in different testing scenarios. Additionally, the device is designed with user convenience in mind. It produces audible alerts for various ESR levels, allowing you to perform multiple tests in succession without constantly having to look at the display. This feature is particularly useful in busy environments where efficiency is key.
Package Contents:
-
ESR70 - Equivalent Series Resistance Meter.
- Extra-long and extra-flexible test cables (450mm of Silicone covered cable).
- 2mm plugs and sockets with removable gold plated crocodile clips.
- Comprehensive illustrated user guide.
- AAA Alkaline cell
Features
- Measure ESR (even in-circuit).
- Measure capacitance (from 0.3μF to 90,000μF).
- Automatically starts analysis when the ESR70 is connected.
- Audible alerts with different tones for various ESR levels.
- ESR resolution down to 0.01Ω.
- Polarity free due to bi-directional low voltage (500mV) test span.
- Low DC resistance checking measurement (even in-circuit).
- Supplied complete with 2mm male test leads and 2mm compatible gold plated crocs.
- Test leads are ultra-durable and 45cm (18") long with 2mm plugs.
- Enhanced software compensation of cable resistance.
- Enhanced compensation for leakage or parallel resistance.
- Improved LCD with better backlight.
- 10x faster capacitance measurement for large capacitors.
- Enhanced user options system.
- New triple-slope measurement system to vastly reduce the influence of parallel resistance and/or leakage current on capacitance measurements.
- Much wider capacitance measurement range now 0.3μF to 90,000μF (was 1μF to 22,000μF).
Specifications
- ESR Range: 0.00Ω to 40.0Ω
- ESR Accuracy: ±2% (typical)
- ESR Resolution (ESR<2Ω): 0.01Ω to 0.02Ω
- ESR Resolution (ESR>2Ω): 0.1Ω to 0.2Ω
- Capacitance Range: 0.3μF to 90,000μF
- ESR Test Frequency: 50-100kHz ±4%
- ESR Test Voltage (across 40Ω): 40mV (typical)
- Operating Temperature Range: 15°C to 35°C (60°F to 95°F)
- Battery Type: AAA Alkaline (1.5V) Supplied
- Display: Backlit Alphanumeric LCD
- Auto-Off Period: 1 minute (typical)
- Shipping Weight: 0.16770Kg
