Description

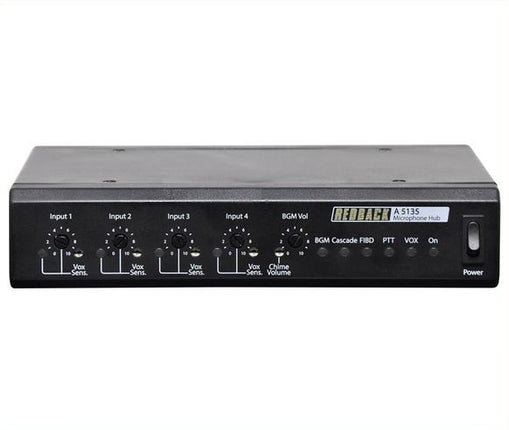

This microphone hub was created with small supermarkets in mind. It caters for industry standard supermarket 5 pin XLR microphones, connecting them to a local wallplate or other Redback UTP transmitter over Cat5/6 cable. This simplifies installation cabling for multiple microphone systems. The hub can accommodate up to four microphones, with each input capable of being configured for VOX or PTT muting. Three levels of priority options are available, including FIBD, 1 over 2-4, 2 over 3-4, 3 over 4, or a combination. Each wallplate also includes system busy LED indicators.
Part of the Redback UTP Solutions Range.

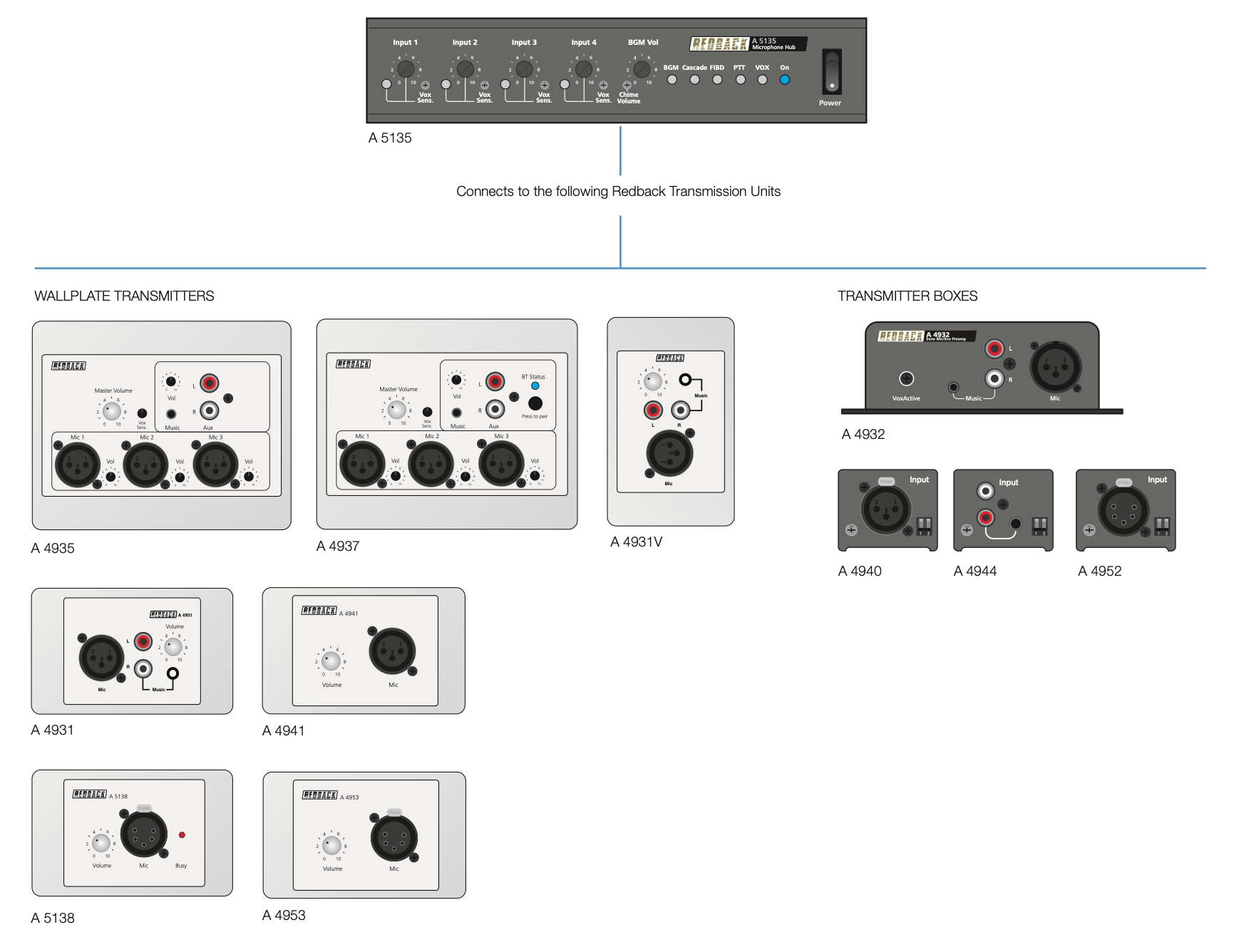

The Redback A5135 4 Output Microphone Hub is a key component of the versatile Redback UTP solutions range. It enables seamless connection between various audio signals in local zones and equipment racks, with a wide selection of interchangeable transmitters and receivers. Check the product's connection matrix within the Redback range for compatibility with other items.
Features
- Connects to four paging microphones via A 5138 wallplates or other Redback UTP transmitter at each location
- Built for supermarkets, food outlets or anywhere multiple paging microphones are in use
- Easy Cat5e/6 cabling back to hub
- Adjustable VOX sensitivity
- PTT muting
- 24V DC operation
- BGM input
- Balanced & line outputs
- Australian designed & assembled.
Rack Mounting:
To install a Redback half rack product into a 19" racking system, the H 4990 bracket is needed. If mounting only one product on the H 4990 bracket, a H4992 metal or H 4993 plastic infill panel can be used for a cleaner appearance.
Output Connectors
- Audio Outputs: Dual RCA, Euroblock terminals
Output Connectors
- Wall Plate Inputs: RJ45 8P8C
- 24V DC Power: 2.1mm JACK (centre +ve)
- 24V DC Power: Euroblock terminals
- BGM Input: Dual RCA
Controls
- Volume1-4: Front Volume
- Vox Sensitivity 1-4: Front Adjust
- Chime Volume: Front Adjust
General
- Indicators: BGM Active, PTT Muting, VOX Muting, Cascade Mode, FIBD Mode, On
- Power Supply: 24V DC @ 1 Amp
- Dimensions: 210W x 122D x 44H
- Weight: 0.4 kg
- Balanced Output Level: 1V
- Output Line Level: 1V
- BGM Input Line Level: 1V
