Description

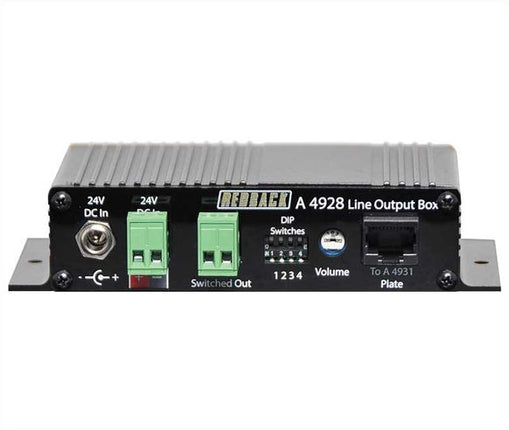

This microphone/line hub is specifically designed to receive audio from a preamp UTP wallplate or compatible transmitter box. It can accept either a microphone or line input and convert the signal to a balanced high level output. The 3V signal is transmitted through a Cat5e cable, allowing for distribution up to 300 meters without any interference. The unit also features a dedicated balanced or unbalanced output, complete with volume control. With DIP switch options for balanced mic/line or unbalanced line level output, it can easily be connected to amplifiers. The hub is powered by a 24V DC plugpack.
Part of the Redback UTP Solutions Range.
This product is a member of the Redback UTP solutions series, featuring interchangeable transmitters and receivers that connect various audio signals between local zones and equipment racks. Refer to the connection matrix to see which items in the Redback range are compatible with this product.
Features
- Connects to a variety of compatible Redback UTP transmitters
- Easy Cat5e/6 UTP data cabling connection.
- Up to 300m cable runs out to wallplate/box.
- Balanced Euro terminal block connections.
- Balanced mic or line level operation.
- 24V DC operation.
- Australian designed & assembled.
- Input Mic Level Sensitivity: 3mV
- Input Line Level Sensitivity: 1V
- Music Input Level Sensitivity: 500mV
- Output Connector: RJ45 8P8C
