Description

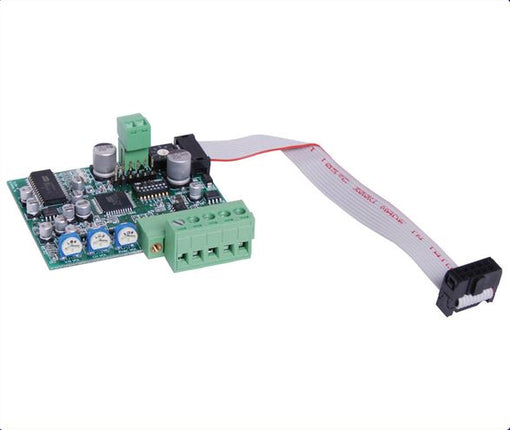

The A 4573 module is capable of generating a variety of pre-announcement chimes and alert and evacuation tones for specific Redback® products. It comes equipped with separate volume controls for adjusting the levels of the alert/evac tones, chimes, and message/voice-over.
The chimes and alert/evac tones can be activated by closing contacts through a five-way euro block and can be set to either momentary or alternate action via on-board DIP switches. The module features a selection of chime options, including pre-announcement, Ding Dong, repeating Bing, and repeating Bong, all of which are easily selectable through DIP switches.
The module includes a switch over option for changing the evacuation tone after a designated time frame. The time can be adjusted from 30 seconds to 270 seconds in 30 second intervals, or it can be disabled altogether. Additionally, a microphone is included for recording an emergency voice-over message, which can be activated via DIP switches and will play twice after the evacuation tone is repeated four times.
Important Note:
The evacuation tone for this device conforms to fire evacuation standards AS1670.4.2004
The evacuation tone (temporal pattern) conforms to international standards.
Compatible Amplifiers - see accessories listed below
A 4037 40 Watt Amplifier
A 4043 60 Watt Amplifier
A 4047 100 Watt Amplifier
A 4377A 125 Watt Amplifier
A 4387A 250Watt Amplifier
A 4275C 125 Watt Amplifier
A 4285C 250 Watt Amplifier
Compatible Mixers - see accessories listed below
A 4480A
A 4480B
Suitable Wallplates for remote triggering - see accessories listed below
A 2078B
A 2081
