Description

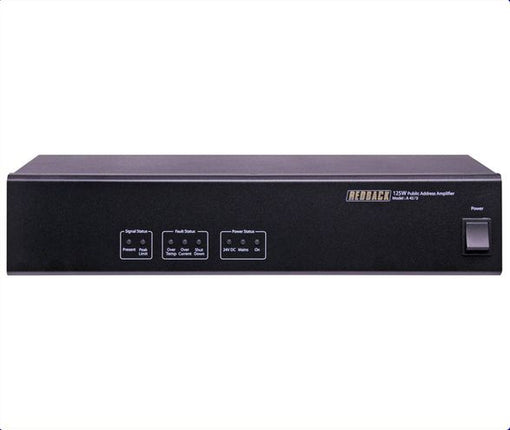

These booster amplifiers are perfect for areas that need high power zone amplification. Simply choose the appropriate power rating for each zone's wattage needs. These models are well-suited for shopping centers, public transportation hubs, and convention centers. They all run on both 240V ac and 24V dc for backup battery operation and feature a 3-pin balanced XLR input (500mV). The level control is located on the back to prevent tampering or accidental adjustments.
This power amplifier includes built-in protections for potential issues such as output overvoltage, overcurrent, and overtemperature. These features are self-resetting once the problem is resolved. The front panel also displays the status of the amplifier at all times via LED lights. To ensure dependable operation, a fan cooling system is activated as needed. Additionally, a dedicated 24V DC output with a capacity of 1A is located on the rear of the amplifier for powering auxiliary devices.
Features
- Robust design incorporating the latest Mosfet technology
- Very Low noise and distortion
- 70V, 100V and 4-16Ω outputs
- 240V AC or 24V DC operation
- 24V DC @ 1 Amp output for external devices
- Multi stage thermally cued fan cooling
- Output Peak Limited
- Thermal Overload protected
- Signal Presence Indicators
- Fault Indicators
- Power Status Indicators
- Rack Mountable (suits 19 inch racks)
- Power: 125 Watt RMS
- Distortion: < 0.5%, @ 1kHz
- Frequency response: 50Hz - 15kHz, -3dB
- Output line: 100V, 70V, or 4 - 16Ω
- Input sensitivity: 500mV balanced
- Signal to noise ratio: (peak limiting by-passed) > 90 dB
- Line output: 600Ω balanced, 0dBV, 3 pin XLR
- Speaker Connection: Screw terminals
- 24V DC Output: Screw terminals
- Inputs: 3 pin XLR (500mV)
- 24V-30V DC power: Screw terminals
- 240V ac power: IEC power connector
- Indicators: Mains, 24V DC, Power, Signal presence, Over temp, Over current, Shut down, Peak limiting
- Current draw: 250mA Standby, 8A Full @ 24V DC
- Protection: 5A a.c. and 10A dc fuse
- Power supply: 240V ac or 24V dc (nominal)
- Dimensions: 483W x 340D x 88 mm
- Weight: 12.4kg
- Input Impedance: ~10KΩ
