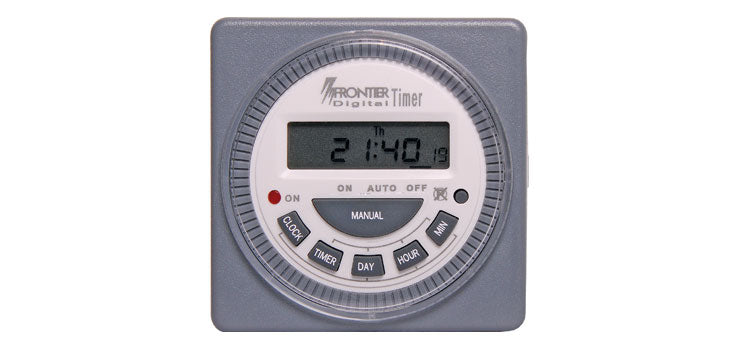

The versatile 8 Program 12V DC Alternate Digital Timer Module is perfect for automating any appliance effortlessly. Configure it to switch up to 8 times daily, with options for various day settings like weekdays, weekends, or custom selections. Each program allows for different 'on' durations, offering flexibility and customization.
With 8 programs per day and 56 per week, this timer caters to diverse scheduling needs. Choose from three operation modes, including 'always on' and 'always off' override modes for added control. Switch modes are adjustable only during power application.
Experience uninterrupted functionality even during power outages, thanks to its internal CR2032 battery backup. For added peace of mind, a 3V CR2032 lithium battery cell is included for power backup of programmed times. Simplify your automation needs with our reliable digital timer module.
Specifications
- Contact Rating: 16A @ 30VDC
- Operating Voltage: 12VDC
- Panel Thickness (p in diagram): <7mm
- Switch Type: SPDT
- Shipping Weight: 0.14200Kg
